Description
High-Torque Utility Engineering. Unrivaled Backcountry Power.
When hauling heavy gear through thick timber, climbing steep mountain fire roads, or navigating deep sand and snow, standard e-bike setups can stall out or overheat under the pressure. The Fission Hellbender Max is built specifically to handle those high-demand situations, acting as a dependable mechanical pack mule that handles the toughest terrain without hesitation.
At the heart of this machine is the Bafang 1000W Ultra-Drive mid-drive motor, pumping out a staggering 160 N·m of torque. Combined with an integrated, high-precision torque sensor, the system reads your pedaling input instantly and delivers smooth, predictive power right when you need it most. Built onto a reinforced 6061 aluminum chassis and wrapped in authentic Mossy Oak® camouflage, it serves as a quiet, capable vehicle designed for hunters, land managers, and off-road adventurers who refuse to let landscapes dictate their boundaries.
Technical Highlights
-
Bafang Ultra-Drive Powerhouse: Produces immense low-end torque to pull trailers up steep grades, clear technical obstacles, and flatten demanding elevation gains.
-
DYISLAND™ Quad-Piston Safety Braking: Outfitted with specialized DYISLAND LD4X-300 4-piston calipers running thick-gauge, high-heat dissipation rotors and oversized MT600 sintered pads. The matching LDN levers feature an integrated electronic sensor that instantly cuts motor power the millisecond you pull the brakes.
-
SRAM NX 1×11 Drivetrain with X-ACTUATION™: Features a uniform, precise cable-pull ratio across the entire gear range to eliminate indexing lag, ghost shifting, and chain slap under heavy motor loads.
-

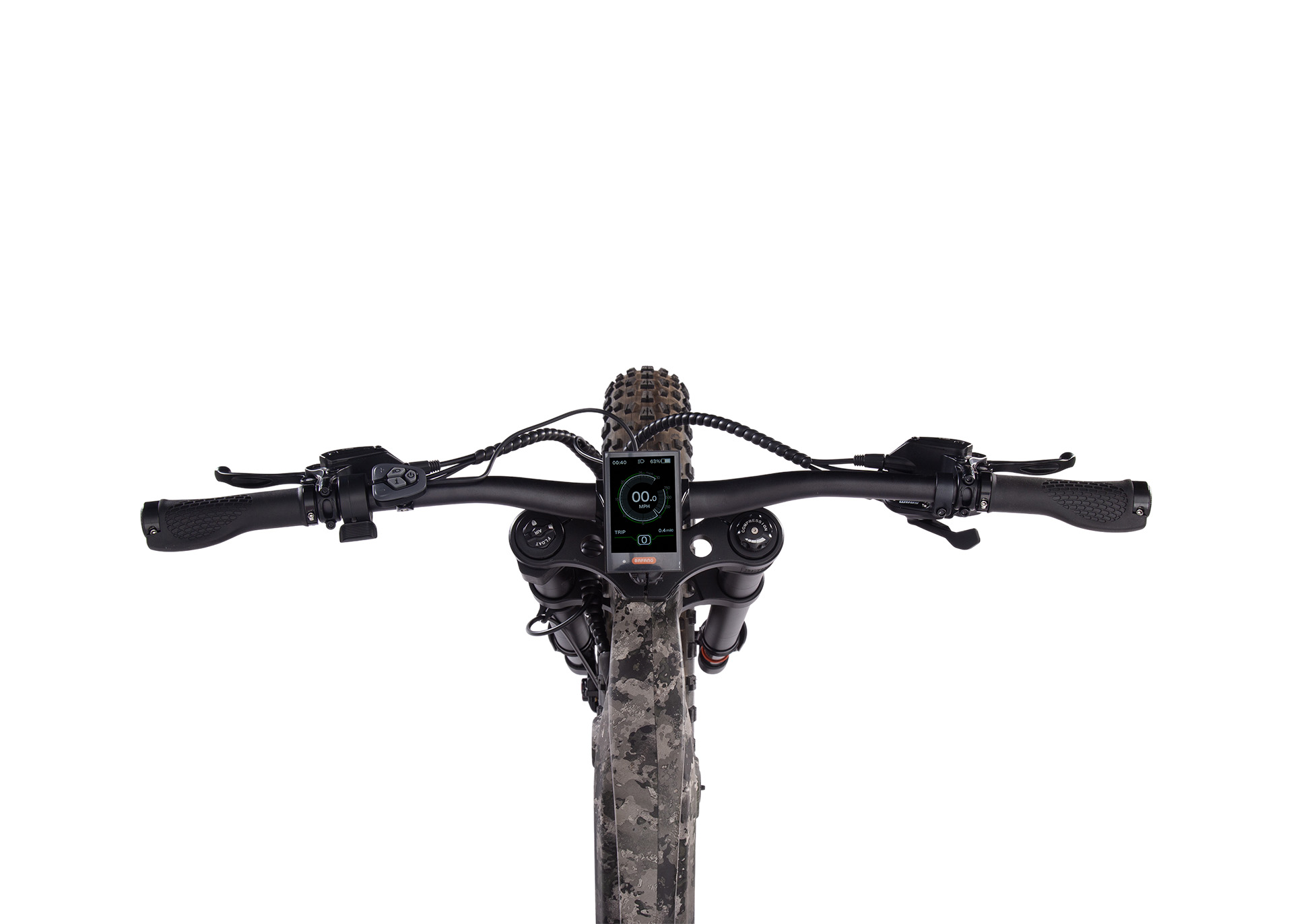

Bafang DP C18.U 4.2 Color Cockpit: A high-contrast, center-mounted matrix display giving you real-time data tracking (voltage, wattage output, and trip metrics) alongside integrated ambient light sensing and a hidden mobile device charging port.
-
Inverted Air Suspension Architecture: The EXSHO inverted front air fork and Fastace piggyback rear air shock provide high structural rigidity and smooth, stiction-free travel to absorb jarring trail impacts under load.
Specifications
| Category | Component / Feature | Specification |
| Power & Electronics | Motor System | Bafang 48V / 1000W Ultra-Drive Mid-Drive (G510) |
| Peak Torque Output | 160 N·m (Max Climbing Force) | |
| Battery Pack | LG 48V / 20 AH (High-Density Cells) | |
| Display Telemetry | Bafang DP C18.U 4.2 Intelligent Full-Color LCD Dashboard | |
| Drive Sensor | Precision Real-Time Torque Sensing | |
| Chassis & Suspension | Frame Construction | 6061 Premium Aluminum (Utility Geometry) |
| Front Suspension | EXSHO Inverted Air Fork (Adjustable Damping) | |
| Rear Suspension | Fastace Rear Air Shock (Piggyback Reservoir) | |
| Tire Profile | Maxxis Minion 26″ × 4.8″ (Ultra-High Volume Fat Tires) | |
| Drivetrain & Brakes | Gearing Array | SRAM NX 11-Speed 1x Mountain Drivetrain |
| Shift Technology | X-ACTUATION™ Precise Cable Pull Ratio | |
| Brake System | DYISLAND™ LD4X-300 Hydraulic Disc Assembly | |
| Caliper Type | 4-Piston Opposing Layout with Thick-Gauge Rotors | |
| Brake Levers | DYISLAND™ LDN Series with Electronic Motor Cut-Off | |
| Vehicle Weight | 100 lbs (Heavy-Duty Payload Capacity Rated) | |
| Aesthetic Finish | Mossy Oak® Bottomland / Shadow Grass Blades | |
| Performance Metrics | E-Bike Classification | Class II & III Configurable |
| Top Speed Velocity | 28 MPH (Speed Governed) | |
| Assist Profiles | 5-Level Pedal Assist (PAS) with ECO/SPORT Modes + Thumb Throttle | |
| Operational Range | 45–65 Miles (Dependent on terrain, rider weight, and cargo load) |
